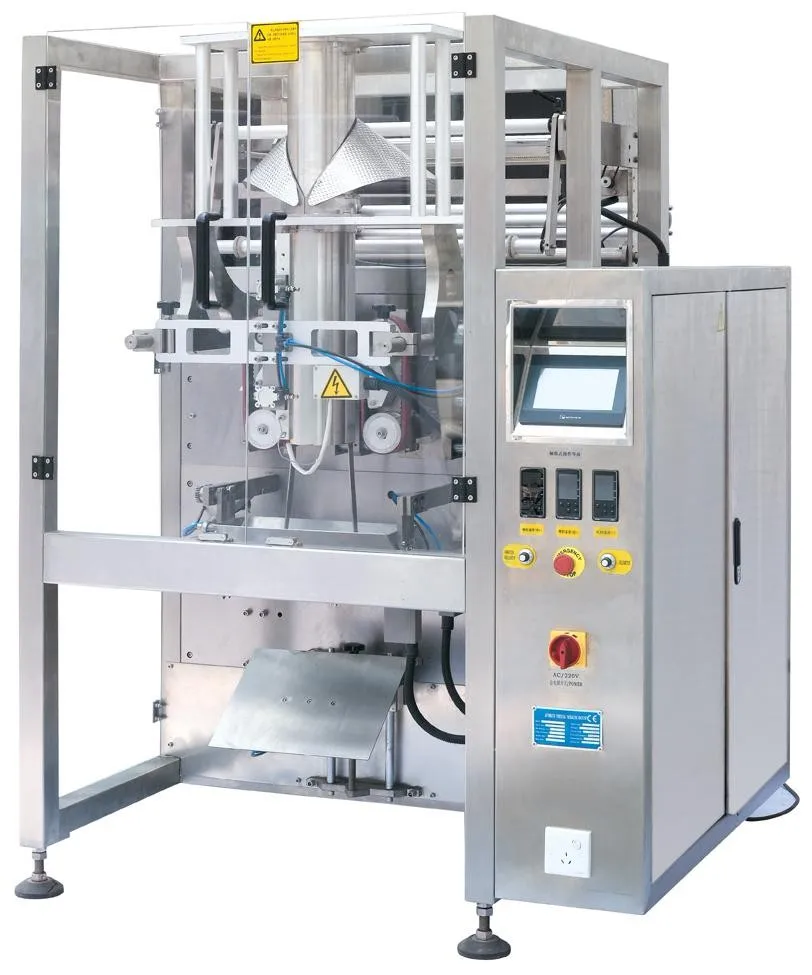

XP-320Y Automatic Granule Packing Machine

FOB Reference Price:Get Latest Price
$22,000.00 - $35,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Power:
1.8KW
Model Number:
XP-320Y
Lead Time:
Quantity(Pieces) 1 - 1 2 - 5 >5
Est. Time(days) 10 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Application:
Chemical, Food
Packaging Material:
Plastic
Type:
Multi-Function Packaging Machine
Applicable Industries:
Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Food Shop
Condition:
New
Function:
Other
Packaging Type:
Bags, Bottles
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220v
Place of Origin:
Zhejiang, China
Brand Name:
wanhe
Dimension(L*W*H):
(L)880x(W)1200x(H)1950mm
Certification:
CE
After-sales Service Provided:
Video technical support, Online support, Engineers available to service machinery overseas
material:
stainleaa steel
Product Certification Verified
CE Certified.
Valid from 2016-07-12 until 2049-12-31
Supply Ability
Supply Ability:
100 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
wooden case
Port
ningbo
Lead Time :
Quantity(Pieces) 1 - 1 2 - 5 >5
Est. Time(days) 10 15 To be negotiated
Video Description
Product Description

I. the major performance and structural feature
◆PLC computer control system.PLC from Japan or Germany
◆Big touch From Tai wan . Easy to operate and control the machine
◆High precise positioning with servo film transporting system .Servo motor from Germany Siemens to ensure stable.
◆warn protection function
◆the machine will automatically complete all packaging processes from measuring, feeding, filling,

Printing ,finished bag .
◆The way of bag making: the machine can make pillow-type bag and standing bag according to customer's requirements. Punching hole bag & connect 5-12bags and so on .
II Technical parameter



Items
Content
Packing speed
10-60 bag/min
Bag size
(L)80-450mm & 600mm max (W)100-350mm
Bag making mode
Pillow-type bag, standing bag, punching device
Range of measuring
5000ml(most)
The maximum width of packing film
720mm
Air consumption
0.8Mpa300L/min
Main power/voltage
4KW/220V
Dimension
(L)1430×(W)1400×(H)1600mm
The weight of switchboard
800kg
Number
Name
Brand
Country
1
Touch sensitive screen
WEINVIEW
TAIWAN
2
PLC
MUTISUBISH
JAPAN
3
Servo motor
SCHNEIDER
FRENCH
4
Horizontal cylinder
SMC
JAPAN
5
Vertical cylinder
SMC
JAPAN
6
Cutting cylinder
SMC
JAPAN
7
Two units system
SNS
TAIWAN
8
Solid state relay
FOTEK
TAIWAN
9
Intermediate state relay
OMRON
JAPAN
10
Photoelectric eye
BAIDELI
TAIWAN
11
Power
MW
TAIWAN
12
Transducer
SCHNEIDER
FRENCH
13
winding motor
V.T.V
GERMANY
14
Thermometer control
OMRON
JAPAN

14 NOZZLE WEIGHTER

I. Main performance and structural features

*Select the best combination immediately from diversified weight combinations through computer with perfect combination of high precision and high speed.

*High precision data-type weighing sensor realizes precise weighing.
*Liquid crystal screen operating system in multiple languages such as Chinese and English, etc.

*IP65 grade water-proof and dust-proof design. It's clean and sanitary with all stainless steel parts. Full sealed design prevents accumulation of material and facilitates cleaning.

*It can fine the opening and closing speed of hopper door according to the features of items to be weighed, and prevent crushing and blocking of material.

*With powerful digital automatic counting function, it can record the index for each batch of product such as total bag number; pass rate and difference of single bag, etc.

*Fast return for investment by largely saving large quantity of raw material and labor cost.

Type
 -14heads combination weigher
Maximum weighing quality
Max 5000grams.
Range of weighing precision
+/- 0.2-3g
Maximum weighing speed
120 bags /minute
Hopper capacity
2500ml
Driving
Step motor
Preset number for product
99 kinds
Size of machine body(mm)
1250(L)X1130(W)X1320(H)
*Voltage/ Power:/ Frequency
220V/1500W; 50/60HZ; Rated current: 12A.
Certifications
Detailed Images

14 nozzler weighter

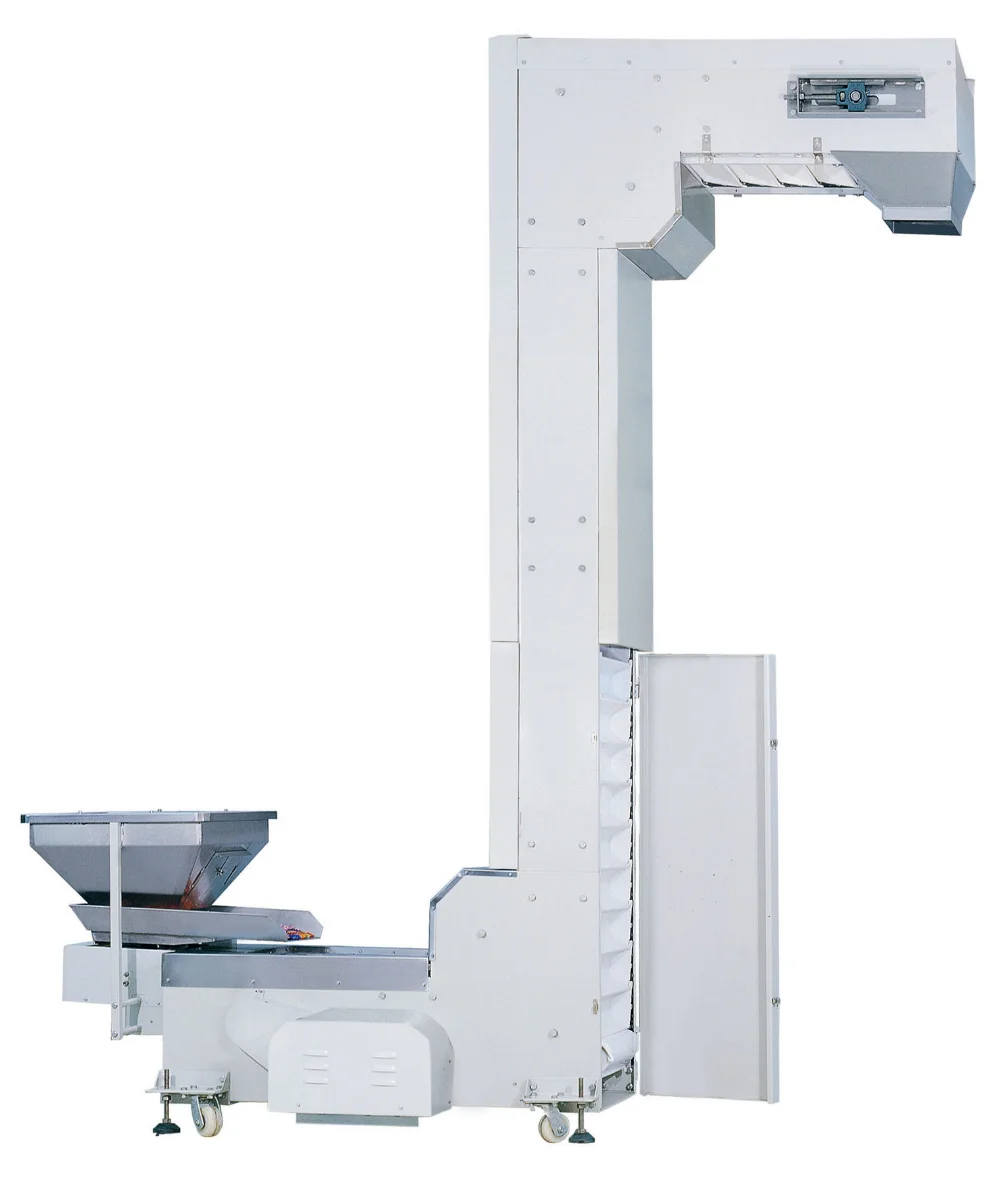

Z TYPE AUTO LOADER



Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
