CGF 18-18-6 Automatic Bottle Water Filling Machine(CE)

FOB Reference Price:Get Latest Price
US $15,000-40,000 / Unit | 1 Unit/Units (Min. Order)
Supply Ability:
50 Unit/Units per Month
Port:
ningbo
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine, Packaging Line
Condition:
New
Application:
Beverage, Commodity, Food
Packaging Type:
Bottles
Packaging Material:
Plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V
Power:
2.2kw
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
WanHe
Model Number:
CGF 16-16-6
Dimension(L*W*H):
2350*1750*2250
Weight:
2500kgs
Certification:
ce
After-sales Service Provided:
Overseas service center available
Automatic:
SS304
Packaging & Delivery
Packaging Details
Wooden Cases WATER FILLING MACHINE
Delivery Time
30 days

Bottle Production WSHING-FILLING-CAPING 3-IN-1 UNIT :

Usage:
The line is mainly used for washing, filling sealing non carbon dioxide drink such as mineral water, pure water, non-gas wine drink and so on.
Characteristics:
It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and more east. The main machine adopts advanced PLC control technology. The key electric elements adopt international famous products.





model

CGF 14-12-5
CGF 18-18-6
CGF 24-24-8
CGF 32-32-8
production(500/m/bottle/h)

3000-5000
5000-6000
8000-10000
10000-12000
filler valves

14
18
24
32
rinser grippers

12
18
24
32
capper header

5
6
8
10
suitable bottle shape
circular or square
bottle diameter(mm)
φ50-φ90
bottle height(mm)
150-310
Compressed air pressure(MPa)
0.3-0.7
washing medium
aseptic water
washing water's pressure(MPa)
0.25
Total output (KW)

2.2
3
4
6.2
oerall dimensions(mm)

2350x1750x2250
2480x1960x2250
3010x2180x2400
4000x2200x2500
(weight kg)

2500
2800
3500
6000

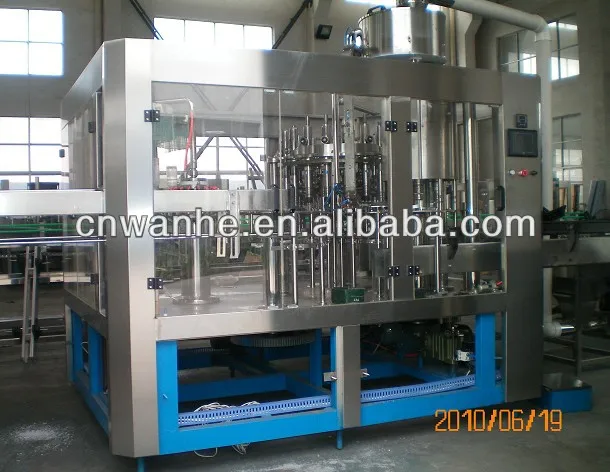

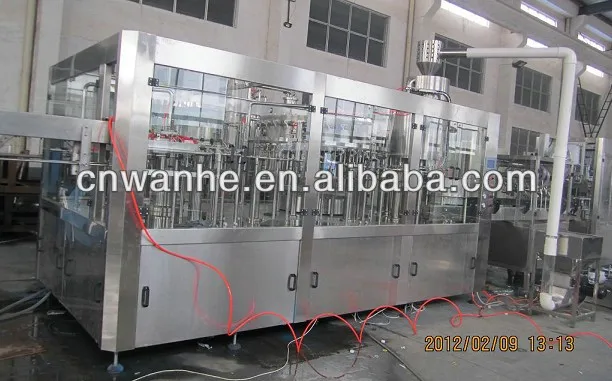

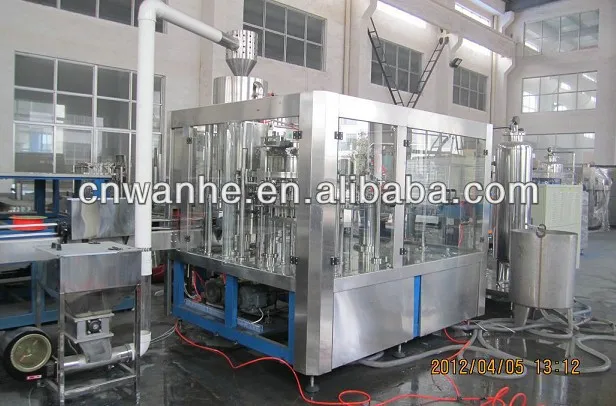

                                                                                     FACTORY VIEW
