WH-520 Low Price Fully Automatic 1kg 2kg 3kg 5kg Bag Rice Packing Machine

FOB Reference Price:Get Latest Price
$17,000.00 - $20,000.00 / Units | 1 Unit/Units (Min. Order)
Model Number:
WH-520
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 35 Negotiable
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Overseas service center available
Application:
Commodity
Packaging Material:
Composite film
Type:
Other, Other
Applicable Industries:
Manufacturing Plant, Farms, Restaurant, Food Shop
Condition:
New
Packaging Type:
Bag
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V
Power:
2.6kw
Place of Origin:
Zhejiang, China
Brand Name:
Wanhe
Weight:
480KGS
Dimension(L*W*H):
900X1120X2360
Certification:
CE
Metal:
Stainless Steel
Supply Ability
Supply Ability:
50 Unit/Units per Month
Packaging & Delivery
Packaging Details
Wooden Case SNACK packing MACHINE
Port
Ningbo/Shanghai
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Product Description

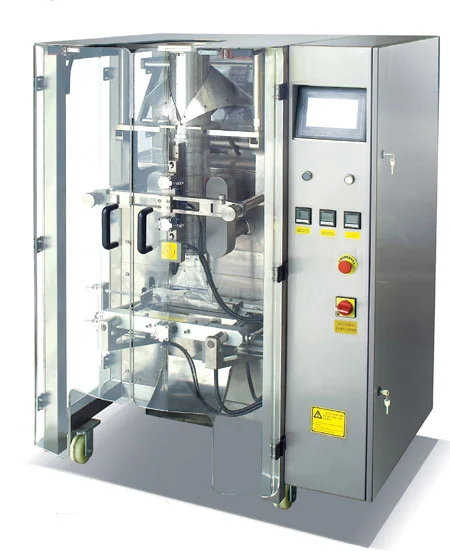

    Complete machine



  main machine



 I. the major performance and structural feature


◆PLC computer control system.PLC from Japan or Germany
◆Big touch From Tai wan . Easy to operate and control the machine
◆High precise positioning with servo film transporting system .Servo motor from Germany Siemens to ensure stable.
◆warn protection function
◆the machine will automatically complete all packaging processes from measuring, feeding, filling,
Printing ,finished bag .
◆The way of bag making: the machine can make pillow-type bag and standing bag according to customer's requirements. Punching hole bag & connect 5-12bags and so on .
II Technical parameter
Items Content


Number
Name
Brand
Country
1
Touch sensitive screen
WEINVIEW
TAIWAN
2
PLC
MITISUBISHI
JAPAN
3
Servo motor
PANASONIC
JAPAN
4
Horizontal cylinder
SMC
JAPAN
5
Vertical cylinder
SMC
JAPAN
6
Cutting cylinder
SMC
JAPAN
7
Two units system
SNS
TAIWAN
8
Solid state relay
FOTEK/GOTEK
TAIWAN
9
Intermediate state relay
OMRON
JAPAN
10
Photoelectric eye
BAIDELI
TAIWAN
11
Power
MW
TAIWAN
12
Transducer
TECORP-GROUP
TAIWAN
13
Winding motor
V.T.V
XIAMEN
14
Thermometer control
OMRON
JAPAN
Detailed Images

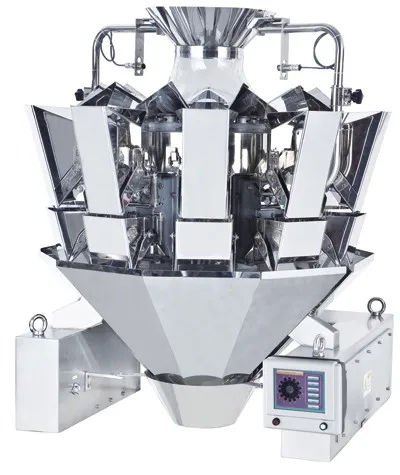

Main performance and structural features

*Select the best combination immediately from diversified weight combinations through computer with perfect combination of high precision and high speed.

*High precision data-type weighing sensor realizes precise weighing.

*Liquid crystal screen operating system in multiple languages such as Chinese and English, etc.

*IP65 grade water-proof and dust-proof design. It's clean and sanitary with all stainless steel parts. Full sealed design prevents accumulation of material and facilitates cleaning.

*It can fine the opening and closing speed of hopper door according to the features of items to be weighed, and prevent crushing and blocking of material.

II. Technical parameter



Type
ten-hopper computer combination scale
Range of single weighing
10-1000g
Maximum weighing quality
3000g
Average tolerance for single bag
0.2-0.5g
Range of weighing precision
0.1-1.5g
Maximum weighing speed
70 bags /minute
Hopper capacity
1300ml
Hopper type
Bi-row hopper without memory
Driving
Step motor
Preset number for product
99 kinds
Size of machine body(mm)
1150(L)X950(W)X1129(H)
*Voltage/ Power:/ Frequency
220V;/1500W; 50/60HZ; Rated current: 9A.

    Z TYPE CONVEYOR

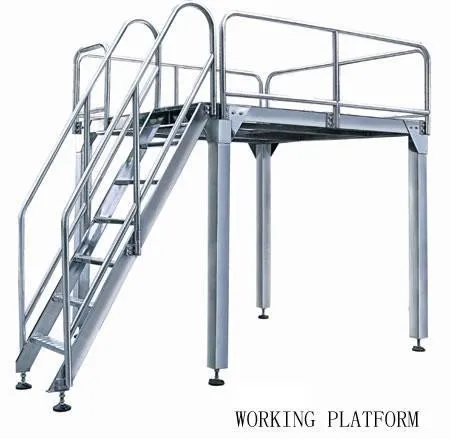

     Working Platform support



Packing & Delivery

wooden case packing

         Container loading
